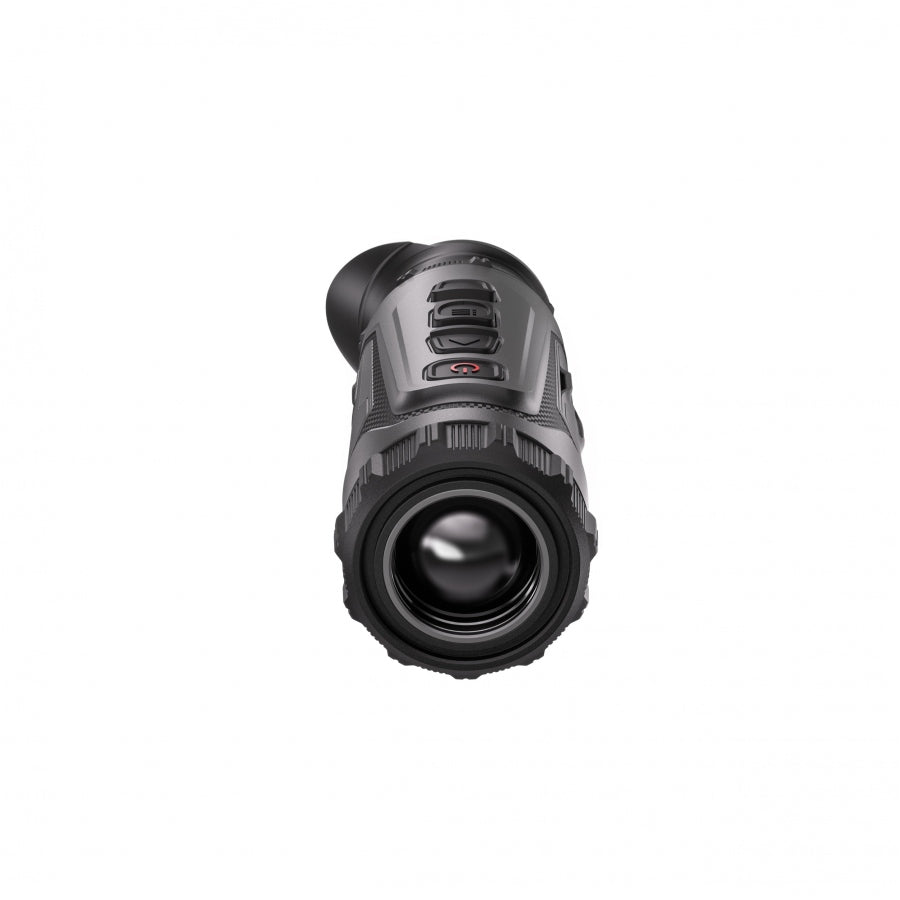

Thermal Imager HIKMICRO Lynx 3.0 LH25 – compact thermal camera 384×288, 25 mm, 1200 m range

HIKMICRO Lynx 3.0 LH25 is a modern, lightweight, and functional thermal monocular designed for those who need a clear image, convenient operation, and reliable performance in the field. The LH25 model is perfect for hunting, nature observation, area protection, and night expeditions where conventional optics are insufficient.

The device is equipped with a VOx 384 × 288 px sensor with a pixel pitch of 12 μm and a high thermal sensitivity NETD below 15 mK. This allows the camera to effectively detect even small temperature differences and produce a clear, detailed image in complete darkness, fog, rain, and difficult terrain conditions.

Key advantages of HIKMICRO Lynx 3.0 LH25

Detection range up to 1200 meters
The 25 mm / F1.0 lens and sensitive thermal sensor allow for the detection of heat sources from a long distance. This is a practical solution for observing wildlife, patrolling an area, or working after dark.

Very good image quality
The AMOLED display with 1920 × 1080 px resolution provides a sharp, high-contrast, and comfortable image. Thanks to the high screen resolution, details are easier to recognize, and observation remains comfortable even for extended periods.

HSIS technology – smooth observation without interruptions
The HIKMICRO Shutterless Image System reduces the need for classic image calibration using a shutter. This makes observation smoother, and the user does not lose sight of the observed object at a crucial moment.

Image Pro 3.0 – improved sharpness, contours, and contrast
An advanced image enhancement algorithm increases detail clarity, enhances contours, and helps distinguish the object from the background more quickly. This is particularly important when observing in forests, fields, or in changing weather conditions.

Zoom Pro – more effective digital zoom
Zoom Pro technology improves image quality when using digital zoom. This keeps the image more detailed even at higher magnifications.

2.5× optical magnification and 8× digital zoom
The combination of optical and digital magnification allows for a total magnification of up to 20×. This facilitates the observation of objects further away, without sacrificing ease of use.

Wide field of view
The LH25 model offers an angular field of view of 10.5° and a linear field of view of 18.4 × 11.2 m at 100 m. This makes it easier to observe a larger area and quickly notice movement in the field.

64 GB internal memory
The built-in memory allows you to save photos and video recordings from observations without the need for constant file transfer.

Replaceable 18650 battery and up to 5 hours of operation
The camera is powered by a rechargeable 18650 battery. The set includes 2 batteries, which increases convenience of use in the field. The device can also be powered via a USB-C port, for example, using a power bank.

Durable IP67 casing
The thermal imager is resistant to dust, moisture, rain, and harsh terrain conditions. It can operate in temperatures from -30°C to +45°C.

Six color palettes

The HIKMICRO Lynx 3.0 LH25 offers 6 image display modes, allowing you to adapt the view to conditions, time of day, and your preferences:

• White Hot – warm objects are displayed as bright.

• Black Hot – warm objects are displayed as dark.

• Red Hot – the warmest elements are highlighted in red.

• Fusion – thermal image with a colored temperature transition.

• Red Monochrome – red palette for long observation without excessive eye strain.

• Green Monochrome – green palette for comfortable night observation.

Built-in static rangefinder

The camera has a static rangefinder function that allows you to estimate the distance to the observed object. You just need to know the approximate size of the target and set the measuring lines on the screen. The device will calculate the distance and display the result on the screen.

Lightweight and comfortable thermal imager for field work

The HIKMICRO Lynx 3.0 LH25 weighs only 328.5 g, making it comfortable for long observations and easy to carry. The compact design, large buttons, and durable casing make the device perform well in real field conditions—even when the user operates it with gloves.

This is an excellent choice for those looking for a modern thermal imager with high image quality, a wide field of view, and good mobility.

Technical data

Model: HIKMICRO Lynx 3.0 LH25
Thermal sensor: uncooled VOx microbolometer sensor
Sensor resolution: 384 × 288 px
Pixel pitch: 12 μm
NETD thermal sensitivity: below 15 mK
Refresh rate: 50 Hz
Lens: 25 mm / F1.0
Detection range: up to 1200 m
Optical magnification: 2.5×
Digital zoom: 8×
Total magnification: up to 20×
Angular field of view: 10.5°
Linear field of view at 100 m: 18.4 × 11.2 m
Minimum focusing distance: 3 m
Display: AMOLED
Display resolution: 1920 × 1080 px
Display diagonal: 0.49"
Internal memory: 64 GB
Wi-Fi: yes
PiP function: yes
HSIS: yes
Image Pro 3.0: yes
Zoom Pro: yes
Diopter correction: ±3
Eye relief: 20 mm
Exit pupil: 6 mm
Tripod mountable: yes
Automatic device shutdown: yes
Power supply: 18650 battery, USB-C port
Operating time: up to 5 hours
Input voltage: 5 V
Input current: 2 A
Protection class: IP67
Operating temperature: from -30°C to +45°C
Maximum humidity: 90%
Dimensions: 158.4 × 49.5 × 53.6 mm
Weight: 328.5 g
Warranty: 3 years manufacturer's warranty

Set contents

• HIKMICRO Lynx 3.0 LH25 thermal imager,

• 2 × 18650 battery,

• AC charger,

• USB-C cable,

• microfiber cloth,

• user manual.
